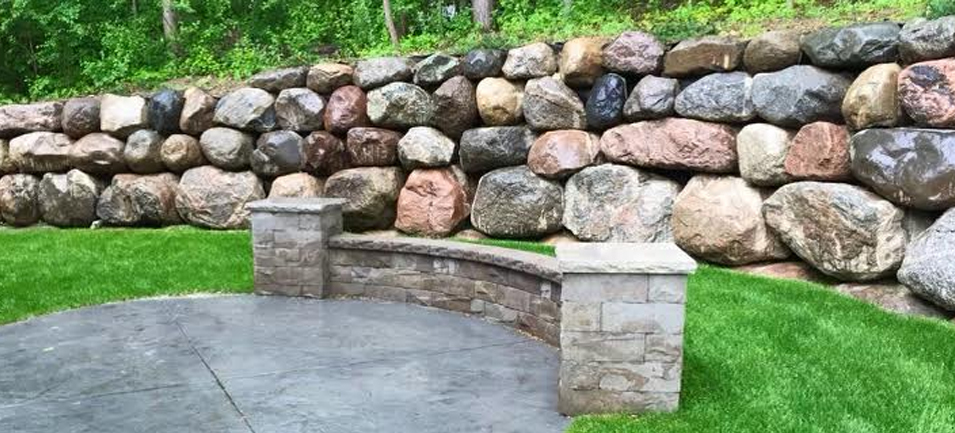

Types of Retaining Walls

Robust

Retaining walls are an essential component of landscaping and civil engineering, designed to hold back soil and prevent erosion, particularly in areas with sloped terrain. Red Clay Brick These structures must be robust enough to counteract the lateral pressure of the earth behind them while also managing water drainage and accommodating shifts in the ground due to freeze-thaw cycles or seismic activity. There are various types of retaining walls, each suited for specific needs, materials, and environmental conditions.

Gravity Walls are one of the simplest types of retaining walls. They rely on their own weight to resist the pressure from the soil behind them. Constructed from heavy materials like stone, concrete blocks, or poured concrete, these walls lean slightly backward towards the retained soil, which enhances stability. Gravity walls are generally used for shorter heights since their effectiveness diminishes as wall height increases.

Cantilever Retaining Walls offer a more technical approach compared to gravity walls. Designed with a reinforced concrete slab that extends horizontally into the backfill material, they use leverage to hold back soil. Cantilever retaining walls have a base slab (footing) divided into two parts: the heel under the backfill and toe extending outward on the opposite side. The vertical stem connects with this footing creating an L-shape in profile which provides resistance against overturning forces. Drainage System This design allows cantilevered walls to retain higher volumes of earth with less material than gravity walls but requires careful engineering calculations during construction.

Sheet Piling Retaining Walls are typically used when space is at a premium or water frontage is involved. Made from steel, vinyl or wood planks driven deep into the ground (about two-thirds below to one-third above), these interlocking sheets form a continuous barrier that holds back loose soils or water. Sheet piling is ideal for soft soils along riversides or coastal areas but may require additional anchoring such as tie-backs if subjected to high loads.

Anchored Retaining Walls provide additional support through cables or rods anchored into rock or soil behind them combined with thin walled facing made from various materials including concrete panels, shotcrete etcetera; these anchors can be mechanically driven then expanded at end portion creating bulb within earth (mechanical anchors) alternatively tensioned after being set place (grouted anchors). This system allows for thinner wall construction thus saving space even further while enhancing strength making it suitable challenging situations like high loading conditions precarious slopes limited access points.

Counterfort Retaining Walls resemble cantilever type but include triangular shaped supports - counterforts - between base slab vertical face located rear side attaching both elements together providing extra reinforcement against moments developed by lateral pressures exerted by retained mass hence optimizing material usage resulting economical solutions especially taller structures beyond 25 feet height where cost-efficiency becomes significant factor consideration.

Robust Finally there's Gabion Mesh Retaining Wall composed wire mesh baskets filled rocks stones debris once stacked together naturally conform land contours creating flexible permeable structure effectively preventing erosion allowing vegetation growth intertwining wireworks promoting ecological balance often seen roadways riverbanks highways diverse landscapes worldwide due its simplicity durability adaptability varied environment settings.

In conclusion each type has unique advantages depending upon application requirements site-specific variables constraints budgets aesthetic preferences; proper selection ensures safe functional long-lasting retention solution harmonizing man-made structures natural environs alike ensuring protection preservation precious land resources years come.Types of Retaining Walls

Types of Retaining Walls

Retaining Walls Experts

Retaining Walls Contractors

The Essentials of Retaining Walls: Materials, Construction, and Maintenance

Retaining walls are essential structures in landscaping, construction, and infrastructure projects. They serve the crucial purpose of holding back soil, preventing erosion, and creating functional outdoor spaces. In this comprehensive guide, we will explore the various aspects of retaining walls, including materials, construction techniques, applications, and maintenance.

Understanding Retaining Walls

A retaining wall is a structure designed to restrain soil to a slope that it would not naturally keep to (typically a steep, near-vertical or vertical slope). They are used to bound soils between two different elevations often in areas of terrain possessing undesirable slopes or in areas where the landscape needs to be shaped severely and engineered for more specific purposes like hillside farming or roadway overpasses.

Key Components of Retaining Walls

  1. Base: The foundation of the retaining wall, typically made of compacted gravel or concrete.
  2. Wall Face: The visible part of the retaining wall, which can be made of various materials such as concrete blocks, stone, or timber.
  3. Backfill: The soil or aggregate material placed behind the wall face to provide stability and drainage.
  4. Drainage System: A crucial component that allows water to pass through the wall and prevents hydrostatic pressure buildup.
  5. Reinforcement: Elements such as geotextile fabric or steel reinforcement that provide additional strength to the wall.

Materials for Retaining Walls

  1. Concrete Blocks: Durable, versatile, and available in various sizes, colors, and textures. Popular choices include Versa-Lok, Keystone, and Allan Block.
  2. Timber: Natural, aesthetically pleasing, and relatively affordable. Common options are treated pine, cedar, and redwood.
  3. Stone: Offers a timeless, natural look and excellent durability. Granite, limestone, and fieldstone are popular choices.
  4. Brick: Provides a classic, decorative appearance and is known for its compressive strength and fire resistance.
  5. Steel: Used for reinforcement and in some cases, as the primary material for the wall face. Galvanized and stainless steel are common options.

Construction Techniques

  1. Gravity Walls: Rely on their own weight and the friction between the wall and the soil to resist pressure from behind.
  2. Cantilevered Walls: Consist of a wall arm and a base slab, with the wall arm extending into the retained soil.
  3. Anchored Walls: Use cables or other anchoring systems to provide additional support and stability.
  4. Sheet Piling: Involves driving steel, vinyl, or aluminum sheets into the ground to create a continuous wall.
  5. Crib Walls: Constructed using interlocking, precast concrete or timber frames filled with compacted soil or gravel.

Applications of Retaining Walls

  1. Residential: Used in gardens, driveways, and outdoor living spaces to create level areas and prevent soil erosion.
  2. Commercial: Employed in parking lots, office complexes, and retail centers for aesthetic and functional purposes.
  3. Landscaping: Essential for creating terraces, raised beds, and multi-level gardens.
  4. Infrastructure: Used in highway construction, bridge abutments, and embankments to ensure stability and safety.
  5. Erosion Control: Vital for preventing soil loss and protecting structures in areas prone to erosion.

Ensuring Proper Drainage

One of the most critical aspects of retaining wall design is proper drainage. Water accumulation behind the wall can lead to hydrostatic pressure, compromising the wall's structural integrity. To prevent this, a drainage system must be incorporated into the wall design.

Key components of a retaining wall drainage system include:

  1. Backfill Material: Use a well-draining aggregate, such as gravel or crushed stone, to allow water to pass through easily.
  2. Drain Pipe: Install a perforated drain pipe at the base of the wall to collect and redirect water away from the structure.
  3. Geotextile Fabric: Place a layer of geotextile fabric between the backfill and the soil to prevent fine particles from clogging the drainage system.
  4. Weep Holes: Incorporate weep holes or drainage outlets in the wall face to allow water to escape and relieve hydrostatic pressure.

Maintenance and Longevity

Regular maintenance is essential to ensure the long-term performance and stability of retaining walls. Some key maintenance practices include:

  1. Inspections: Regularly inspect the wall for signs of damage, such as cracks, bulging, or tilting.
  2. Drainage: Ensure that the drainage system remains clear and functional by removing any debris or sediment buildup.
  3. Vegetation Management: Keep the area around the wall free of large trees or deep-rooted plants that could compromise its stability.
  4. Repairs: Address any issues promptly to prevent further damage. Consult with a professional for significant repairs.

The lifespan of a retaining wall depends on various factors, including the materials used, the quality of construction, and the level of maintenance. A well-designed and properly maintained retaining wall can last for decades, providing lasting functionality and aesthetic value to the landscape.

Common Misconceptions

  1. Retaining walls and garden walls serve the same purpose.
    • Retaining walls are designed to hold back soil, while garden walls are primarily decorative and do not typically bear the load of soil.
  2. All retaining walls require the same maintenance.
    • Maintenance needs vary depending on the materials used and the specific site conditions. Some walls may require more frequent inspections and repairs than others.
  3. Any type of soil is suitable for backfill.
    • The type of soil used for backfill plays a crucial role in the wall's stability. Cohesive, well-draining soils are preferred, and the soil should be properly compacted during installation.
  4. Drainage systems are optional for retaining walls.
    • Proper drainage is essential for all retaining walls to prevent water pressure buildup and ensure long-term stability.
  5. Retaining walls can be easily installed without professional help.
    • While small, low-height walls may be suitable for DIY projects, larger or complex walls require professional design and installation to ensure safety and structural integrity.

Current Debates and Future Outlook

As sustainability becomes an increasingly important consideration in construction, there are ongoing debates surrounding the environmental impact of different retaining wall materials. The use of concrete, for example, has been scrutinized for its carbon footprint, leading to a growing interest in more eco-friendly alternatives like gabions or recycled materials.

The cost-benefit analysis of DIY versus professional installation is another topic of discussion. While DIY projects can be cost-effective for small-scale walls, the long-term benefits of professional installation, such as durability and safety, cannot be overlooked.

Advances in geotextile technology have also sparked conversations about their effectiveness in improving wall stability and drainage. As these materials continue to evolve, their role in retaining wall construction is likely to expand.

Looking ahead, the integration of retaining walls into modern landscaping and urban planning is expected to become increasingly important. As cities grow and urban spaces become more densely developed, retaining walls will play a crucial role in creating functional, aesthetically pleasing, and sustainable environments.

Conclusion

Retaining walls are vital structures that play a critical role in shaping and stabilizing our built environment. By understanding the materials, construction techniques, and maintenance requirements of these walls, we can ensure their long-term performance and safety. As the construction industry evolves, it is essential to stay informed about the latest developments and best practices in retaining wall design and installation. With proper planning, execution, and care, retaining walls will continue to be valuable assets in our landscapes for generations to come.

Minneapolis - Saint Paul Retaining Walls Contractor

Twin Cities, MN Retaining Walls Experts

The Twin Cities of Minneapolis and St. Paul, Minnesota, are a vibrant metropolitan area known for their diverse cultural offerings, outdoor recreational opportunities, and thriving business scene. Situated along the Mississippi River, these sister cities offer a perfect blend of urban sophistication and natural beauty, making them a popular destination for both residents and visitors alike.

History and Background

Minneapolis and St. Paul have a rich history dating back to the mid-19th century. The cities grew rapidly due to their strategic location along the Mississippi River, which facilitated trade and transportation. Minneapolis became known as the "Mill City" due to its numerous flour mills, while St. Paul served as the state capital and a hub for transportation and commerce.

Key Attractions in Minneapolis

  1. Minneapolis Institute of Art: This world-renowned museum features an extensive collection of art from various periods and cultures, including ancient artifacts, contemporary works, and everything in between.
  2. Walker Art Center: Known for its innovative and thought-provoking exhibitions, the Walker Art Center is a must-visit destination for contemporary art enthusiasts.
  3. Minneapolis Sculpture Garden: Adjacent to the Walker Art Center, this 11-acre park features an impressive collection of outdoor sculptures, including the iconic "Spoonbridge and Cherry" by Claes Oldenburg and Coosje van Bruggen.
  4. Chain of Lakes: The Chain of Lakes is a series of interconnected lakes and parks that offer a variety of outdoor activities, such as walking, biking, swimming, and boating.
  5. Stone Arch Bridge: This former railroad bridge, now open to pedestrians and cyclists, provides stunning views of the Mississippi River and the Minneapolis skyline.

Key Attractions in St. Paul

  1. Minnesota State Capitol: Designed by renowned architect Cass Gilbert, the Minnesota State Capitol is a stunning example of Beaux-Arts architecture and offers guided tours showcasing its history and artwork.
  2. Como Park Zoo and Conservatory: This free attraction features a variety of animals, plants, and gardens, including the historic Marjorie McNeely Conservatory, which houses a diverse collection of tropical plants and seasonal flower shows.
  3. Science Museum of Minnesota: With hands-on exhibits and interactive displays, the Science Museum of Minnesota offers a fun and educational experience for visitors of all ages.
  4. Cathedral of Saint Paul: This stunning Roman Catholic cathedral, modeled after St. Peter's Basilica in Rome, is an architectural gem and a spiritual center for the city.
  5. Minnesota History Center: Operated by the Minnesota Historical Society, this museum offers exhibits and programs that showcase the state's rich history and cultural heritage.

Culture and Entertainment

The Twin Cities boast a thriving arts and culture scene, with numerous theaters, music venues, and festivals throughout the year. The Guthrie Theater is a Tony Award-winning theater known for its exceptional productions, while the Ordway Center for the Performing Arts hosts a variety of musical and theatrical performances.

For music lovers, the Twin Cities offer a diverse range of venues and events, from intimate jazz clubs to large-scale concerts at the Target Center and Xcel Energy Center. The cities are also home to several popular festivals, such as the Minnesota State Fair, the Minneapolis May Day Parade, and the Saint Paul Winter Carnival.

Outdoor Recreation

One of the defining features of the Twin Cities is the abundance of outdoor recreational opportunities. The area boasts an extensive network of parks, trails, and lakes, making it easy for residents and visitors to enjoy nature within the city limits.

The Grand Rounds National Scenic Byway is a 51-mile loop that connects many of Minneapolis' parks and lakes, providing a perfect route for walking, biking, or driving. The Mississippi National River and Recreation Area offers opportunities for fishing, boating, and hiking along the iconic river.

In the winter months, the Twin Cities embrace the cold weather with activities like ice skating, cross-country skiing, and even ice fishing on the numerous lakes throughout the area.

Food and Drink

The Twin Cities are known for their diverse and innovative culinary scene, with a wide range of restaurants, cafes, and food trucks offering everything from classic Midwestern comfort food to international cuisines. The area is particularly notable for its Scandinavian influences, with many restaurants offering dishes like Swedish meatballs, lefse, and lutefisk.

In recent years, the Twin Cities have also become a hub for craft beer and distilleries, with numerous local breweries and taprooms showcasing unique and flavorful creations. Some popular local breweries include Surly Brewing, Summit Brewing, and Indeed Brewing.

Education and Economy

The Twin Cities are home to numerous renowned educational institutions, including the University of Minnesota, a top-ranked public research university with campuses in both Minneapolis and St. Paul. Other notable schools include Macalester College, St. Catherine University, and Augsburg University.

The region's economy is diverse and robust, with major industries including healthcare, finance, manufacturing, and technology. The Twin Cities are home to the headquarters of several Fortune 500 companies, such as Target, UnitedHealth Group, and Best Buy.

Transportation and Getting Around

The Twin Cities have a comprehensive transportation system that includes buses, light rail, and a commuter rail line. The Metro Transit system connects the two cities and their suburbs, making it easy to navigate the area without a car.

For those who prefer to drive, the Twin Cities are served by several major highways, including Interstates 35, 94, and 494. The area is also home to the Minneapolis-Saint Paul International Airport, which offers domestic and international flights.

Conclusion

Minneapolis and St. Paul, the Twin Cities of Minnesota, offer a unique and vibrant experience for residents and visitors alike. With their rich history, diverse cultural offerings, abundant outdoor recreation, and thriving economy, these cities have something to offer everyone. Whether you're interested in the arts, food, nature, or simply exploring a new place, the Twin Cities are a destination not to be missed.

The four primary types of retaining walls are gravity walls, cantilevered walls, sheet piling walls, and anchored walls. Gravity walls depend on their mass to resist pressure from behind and are typically made from concrete or stone. Cantilevered walls are constructed with reinforced concrete and designed with a base slab and thin stem; they use leverage to hold back soil. Sheet piling walls are used in tight spaces or soft soils, consisting of driving thin interlocking sheets of steel into the ground. Anchored walls can be any of the above types but include additional strength using cables or other means anchored into the rock or soil behind them.
Choosing the right type of retaining wall depends on several factors including soil characteristics, slope angle, wall height, load types, environmental conditions, and budget constraints. It is essential to consult with a professional engineer or an experienced retaining wall contractor to assess site conditions thoroughly and determine which type of wall will provide optimal performance and safety.
For small-scale projects such as garden landscaping with short segmental retaining blocks (under 4 feet), skilled DIY enthusiasts might manage without professional help provided they follow local building codes. However, for larger scale projects especially where safety concerns due to height or structural load come into play (over 4 feet), its crucially important to hire an experienced professional contractor who understands geotechnical engineering principles necessary for safe construction that complies with all local regulations.
